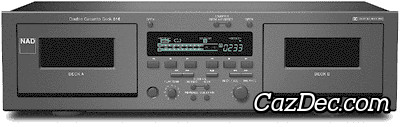

NAD 616 Double Cassette Deck

The NAD 616 is a auto-reverse stereo double cassette deck with Dolby B and C noise reduction, it was introduced by NAD in 1992 and discontinued 3 years later in 1995.

The 616 is equipped with, tape type selection with support for normal, chrome and metal tapes.

Typical front loading double cassette deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

Dolby C-type used in the NAD 616 provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type.

Connection to other audio components for plaback can be achieved by a RCA cable and recording from a source by a RCA cable.

Historic events

1992 The Atari 2600 is finally discontinued 15 years after its introduction in September 1977

1993 The first graphical program able to view data on the "web" is released through a program called Mosaic

1994 CompactFlash (CF) mass storage device format used in portable electronic devices introduced by SanDisk

1995 Full commercialization in the U.S. of the Internet by removing the last restrictions on carrying commercial traffic.

Features of NAD 616

Connectivity

RCA Input/Output Connectors

Electronics

Record Protection

Exterior

Front Loading

General

Stereo

Head Configuration

4 Track / 2 Channel

Noise Reduction

Dolby-B Noise Reduction

Dolby-C Noise Reduction

Power Requirements

Alternating Current

Speed

1⅞ ips - 4.76 cm/s

Tape

Normal Tape Capabilıty

Chrome Tape Capabilıty

Metal Tape Capabilıty

Transport

Auto Shutoff

Mechanical Tape Loading

Auto Reverse
